SPECIFICATIONS
Brand Name: GERMA
Certification: CE,RoHS
Choice: yes
Communication method: RF
Inbox adaptor: No
Origin: Mainland China

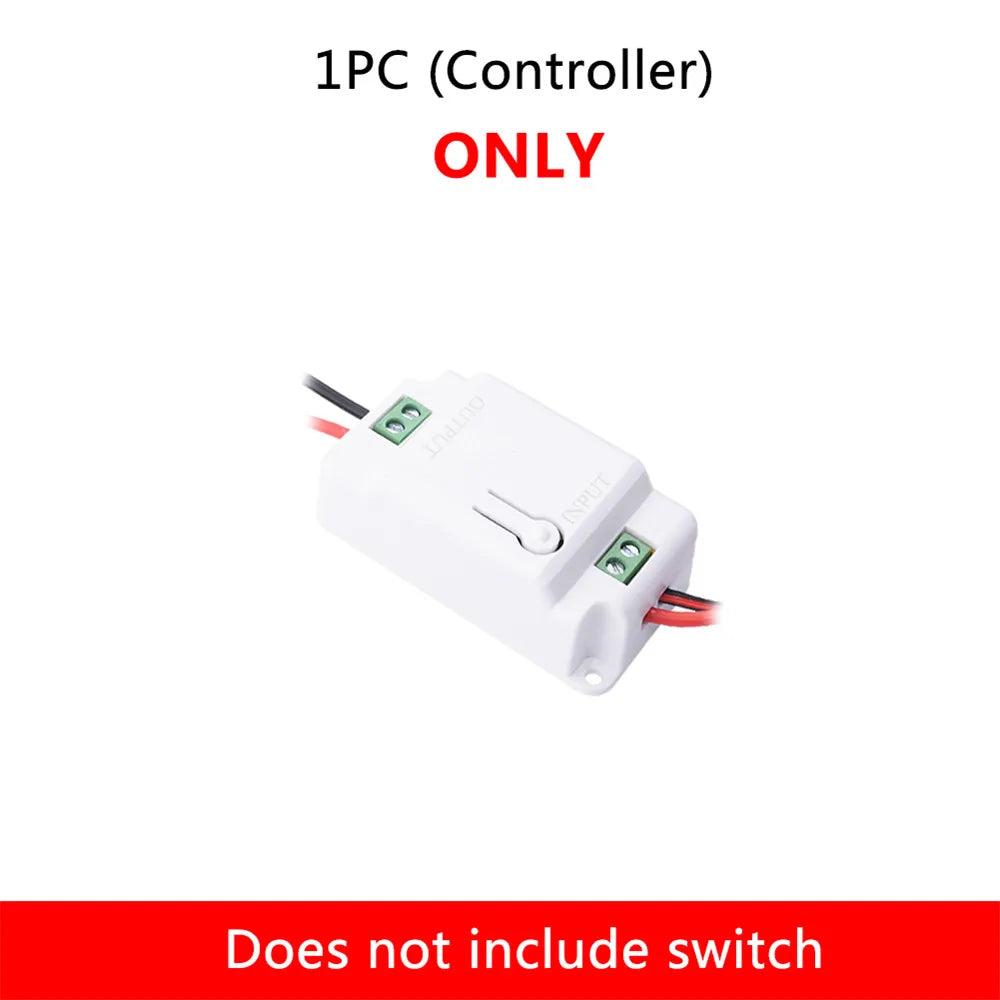

the controller product parameters
1, working voltage: AC85-240V 60HZ/50HZ
2, working frequency: 433.92MHZ
3, the total load power: <1000W
4, receiving sensitivity: -108dBM
5, working method: wireless remote control
6, coding method: learning code
7, modulation method: ASK
8, working temperature: -10 deg C ~ +70 deg C
9, size: 72 * 38 * 26 (mm)
10.The controller has a memory function, remembers the state before the power was turned off

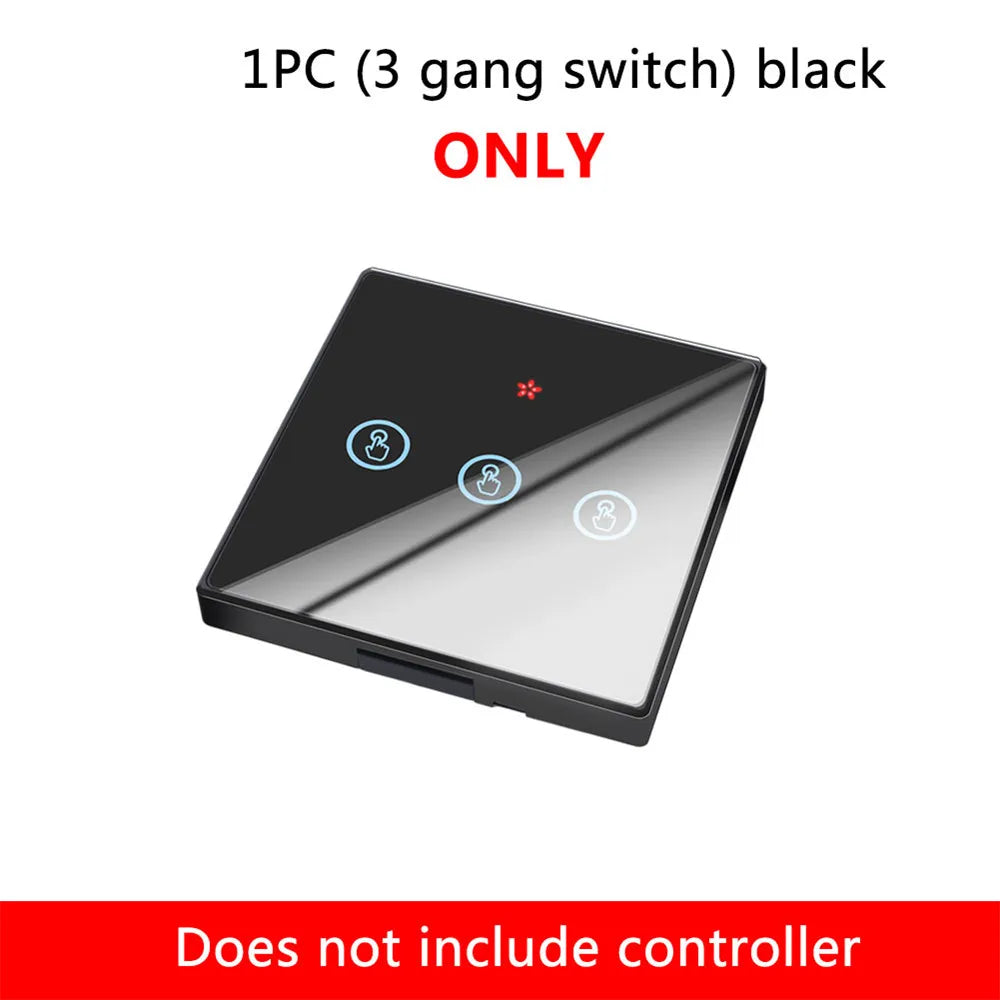

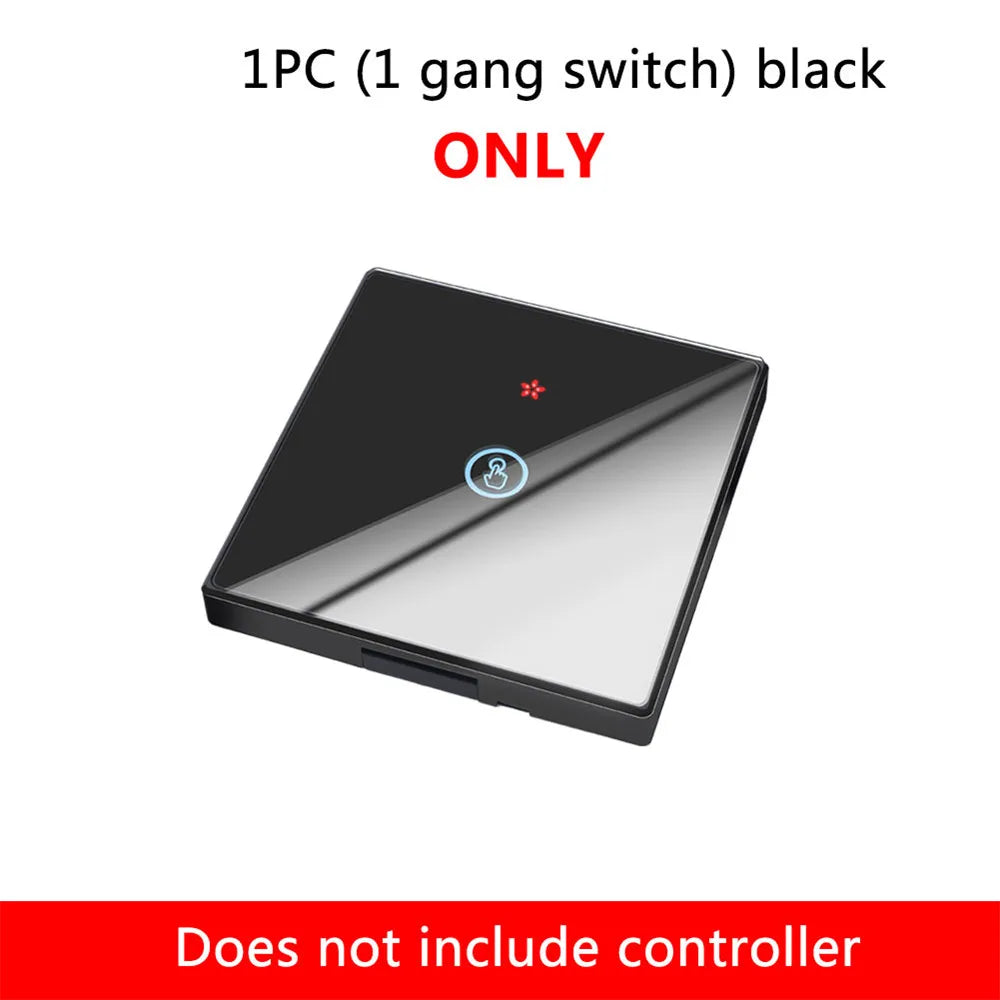

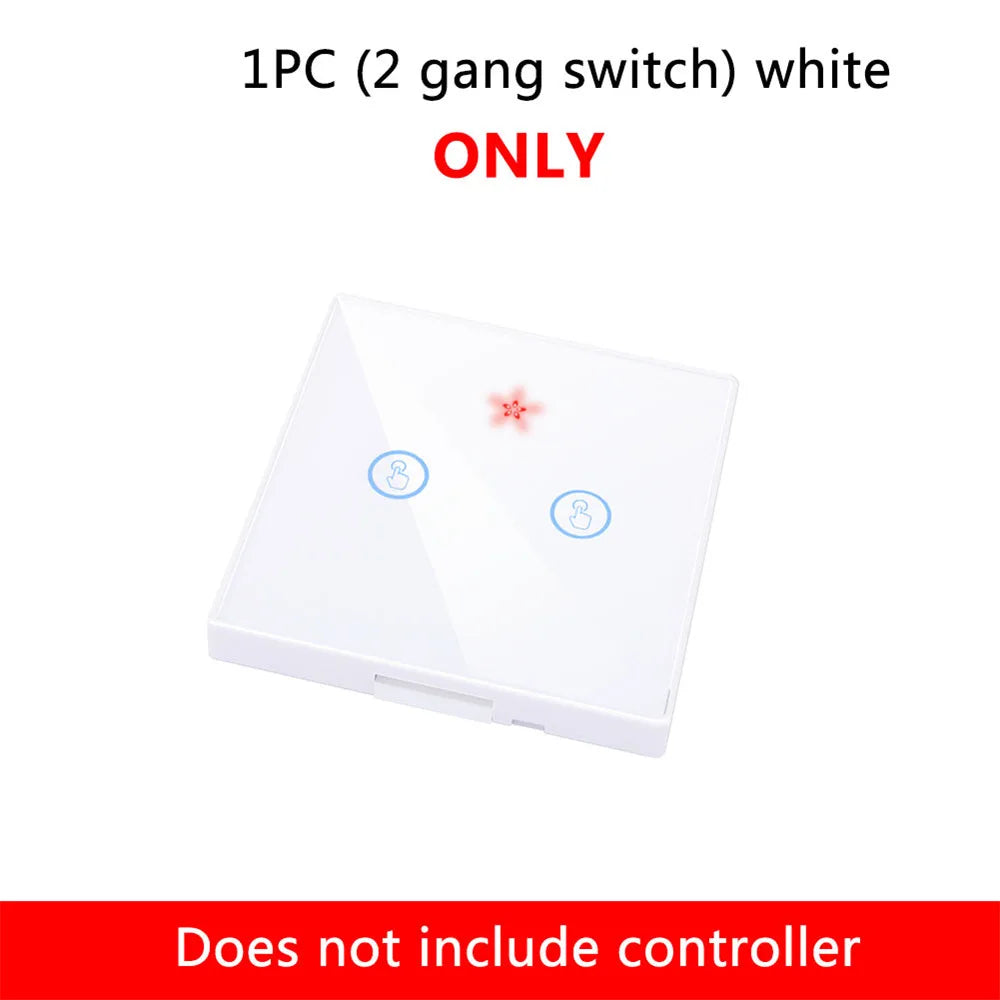

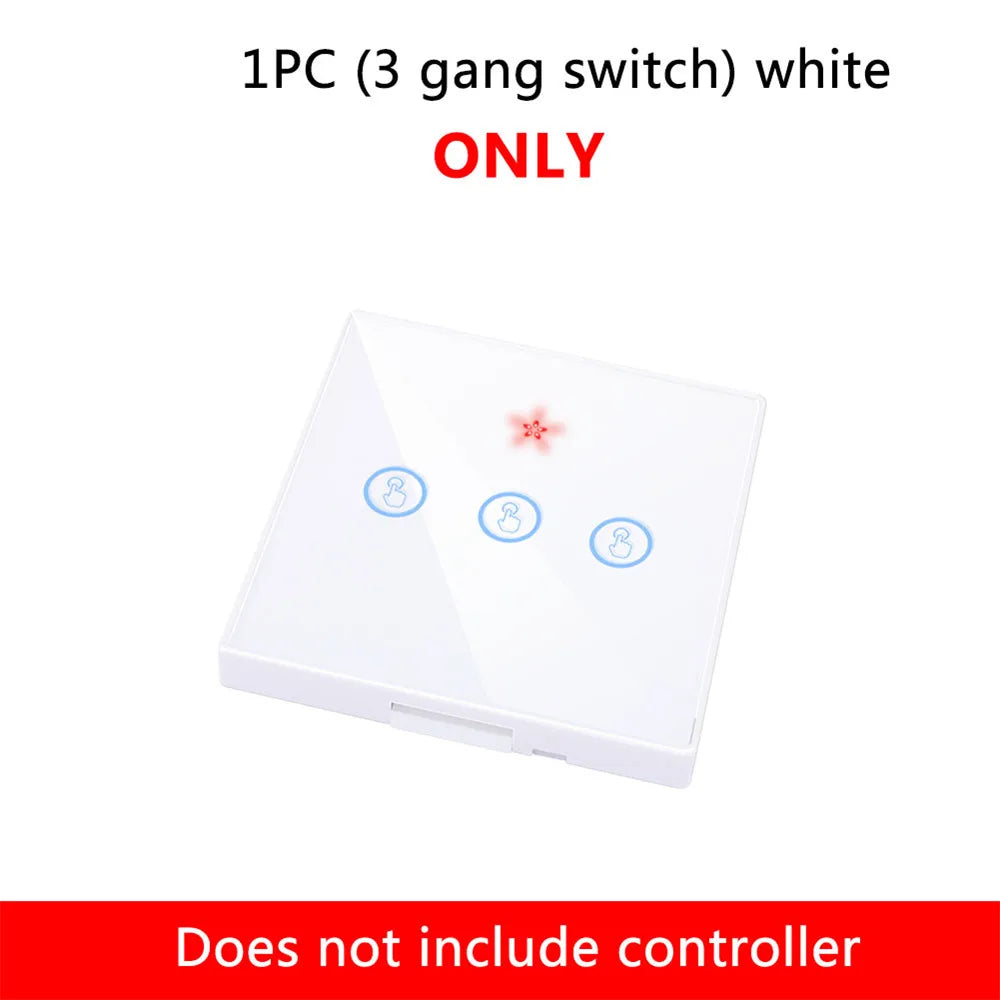

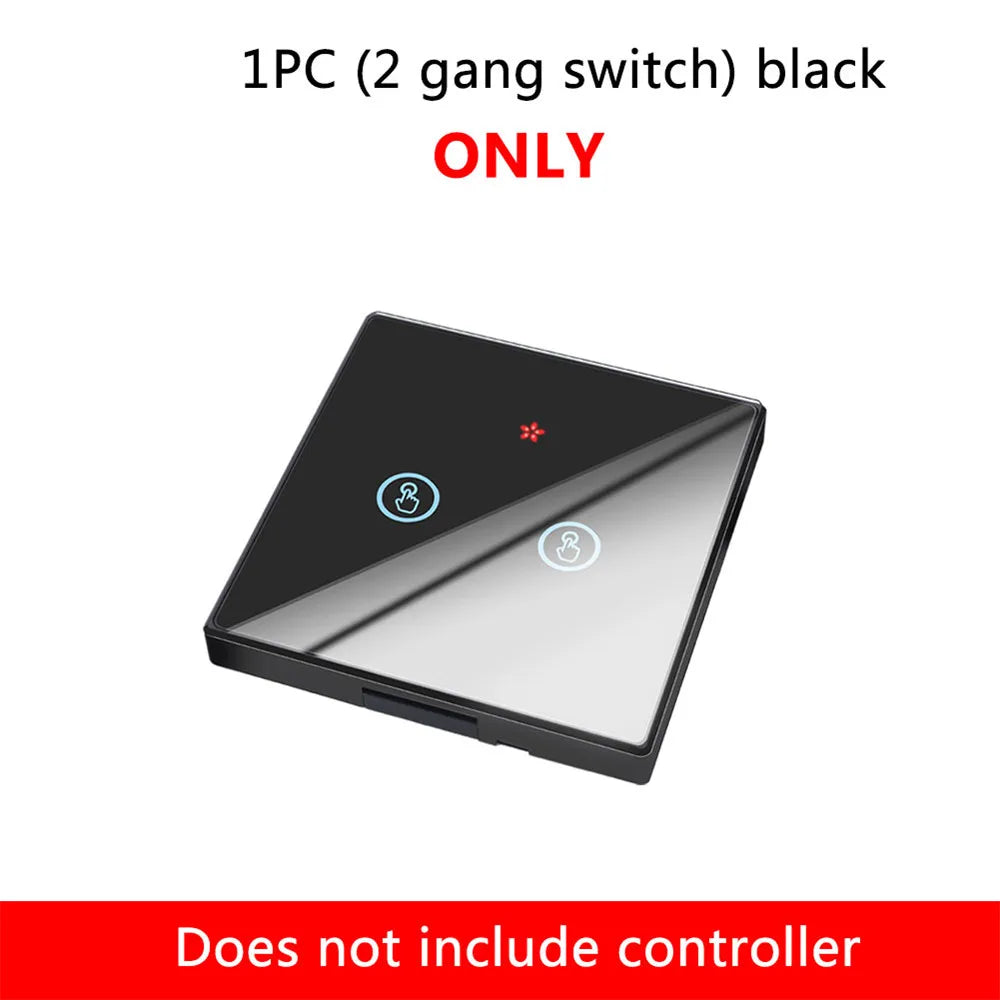

Wireless switch parameters:

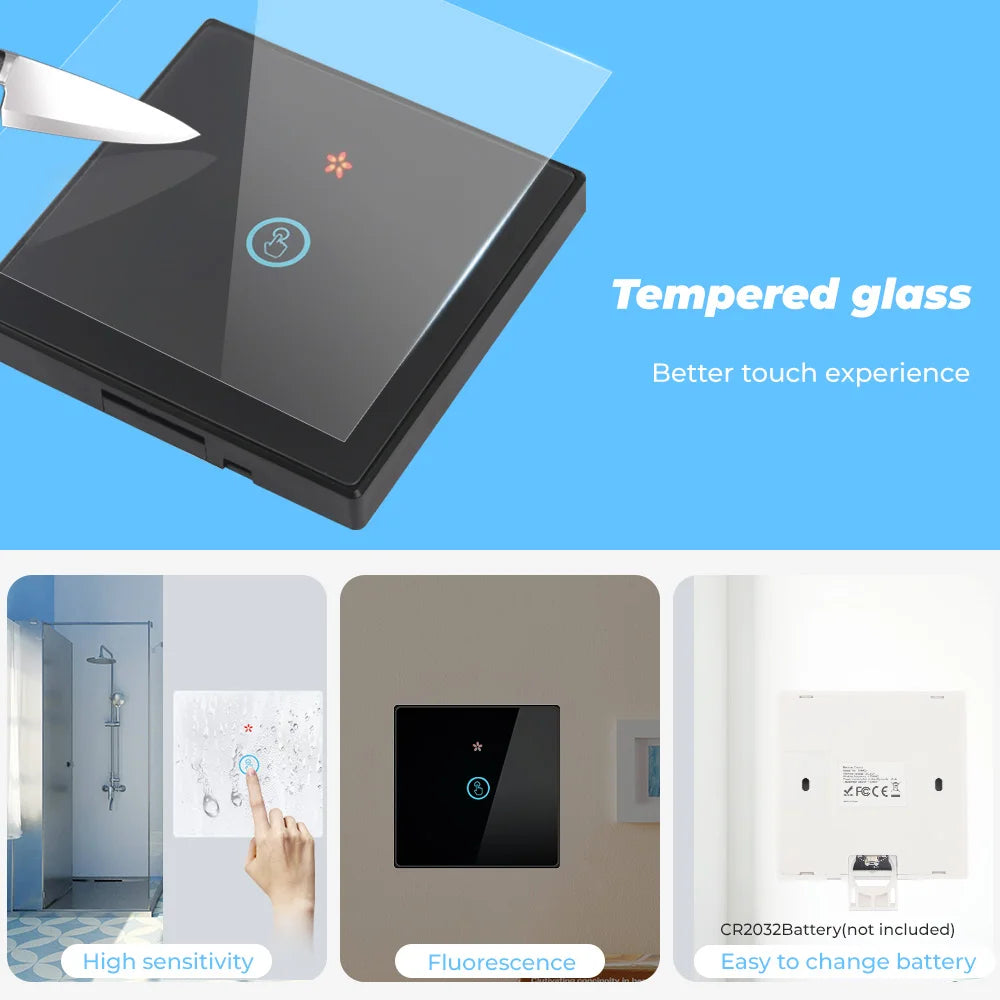

1.HD tempered glass
2, working voltage: DC 3V
3, working frequency: 433.92MHZ
4. Transmitting power: <10mW
5. Remote control distance: <100 meters (indoor distance)
6, working method: wireless remote control
7, coding method: learning code
8, modulation method: ASK
9, working temperature: -10 deg C ~ +70 deg C
10, size: 86 * 86 * (mm)
11.standard battery,Cr2032 battery, ((Does not contain battery))
Pairing signal:
1. Press and hold the controller for 3 seconds to enter the code matching mode (the code indicator light flashes 5 times). At this time, press the wireless switch 2 times and wait for 2 seconds. The code is successful (the default is always on);
clear the signal
Press and hold the controller for 10 seconds to clear the code (the code indicator flashes 10 times);

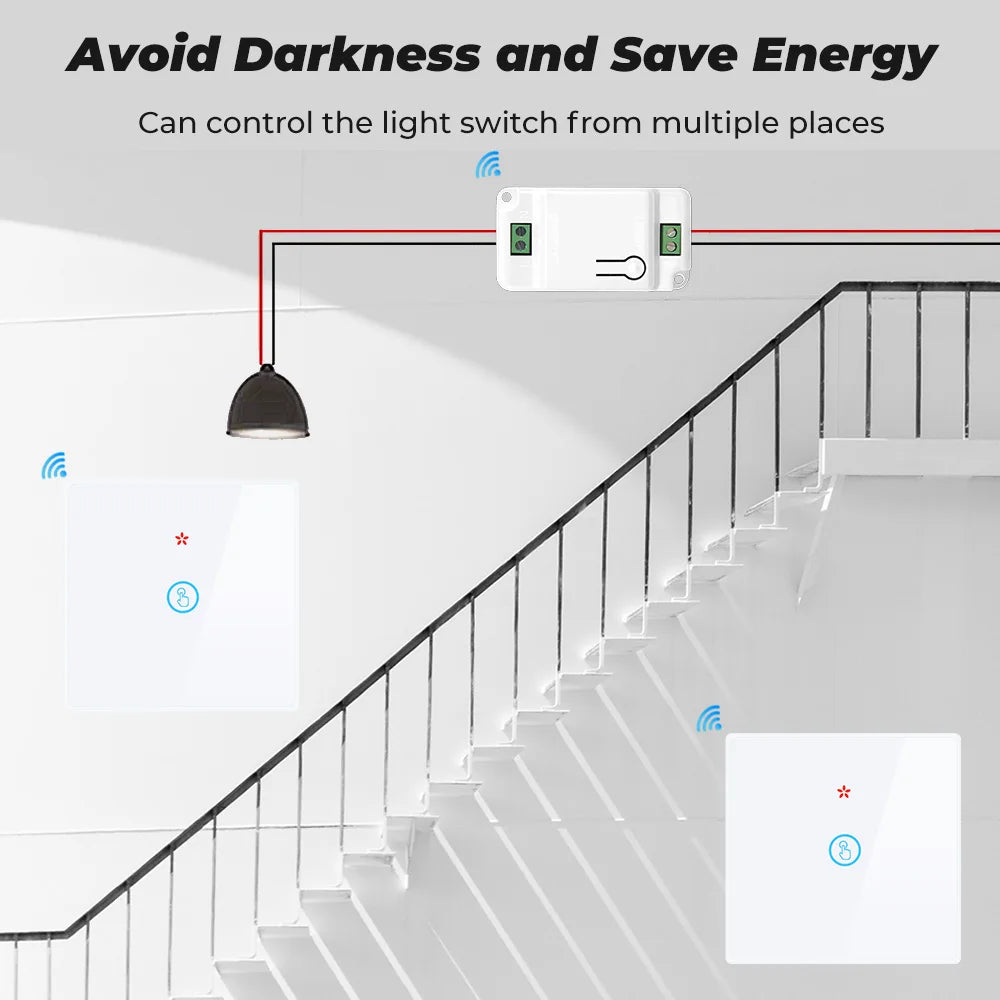

Avoid Darkness and Save Energy
Turn the lights on in advance to avoid darkness. Turn off the lights after leaving, save energy
More convenient and smarter
We recommend multiple products to buy, more convenient at home
Working principle
Input and output intermediate access controller. Wireless switch control current is turned off and on at 433 MHz
Remote control distance 100m
Controlling 1 lamp from multiple places
Drawer box design
Cr2032 Battery , easy to replace the battery The service life is about 12 months. Life and frequency of use are related. Time may be longer (Does not contain battery)
Luminous fluorescent strip
Middle of the night, do not worry about finding the switch
Drop resistance design
Protective housing,four-corner arc transition, buffer protection
Large panel
It is more convenient because it is bigger
Passed CE, fcc ,RoHs certification,
note:
1. professional electrician should operate this product. When powering on, do not touch the antenna. Install this product without opening the protective cover
2.This controller will not be available if a wall switch with RF function is installed at home. Otherwise the function will be affected. Just need to buy a separate wireless switch
3. Do not operate with power. Turn off the power supply and operate it. If the test is confirmed to be correct, use it under the guidance of a professional electrician.
4. When the voltage of the remote control is insufficient, please change the battery in time (the remote control distance becomes closer when the remote control battery voltage is insufficient).
5. When using wireless electronic products, care should be taken to avoid metal masks, large electronic devices, electromagnetic fields, etc., which have strong interference sources, to avoid remote control and short receiving distance or to work normally.
6. Do not use this electronic product abnormally. Abnormal use will reduce product performance and longevity. In severe cases, damage to the product will also pose a safety hazard.
